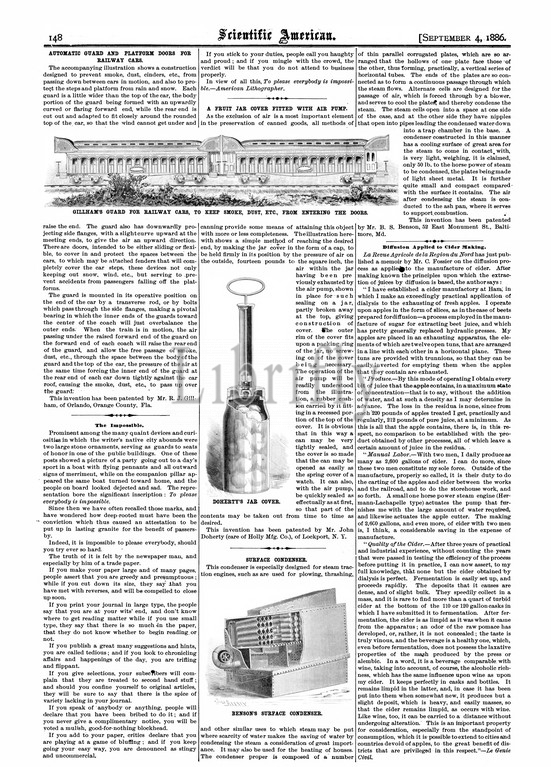

AUTOMATIC GUARD AND PLATFORM DOORS FOR RAILWAY CARS. The accompanying illustration shows a construction designed to prevent smoke dust cinders etc. from passing down between cars in motion and also to pro tect the steps and platform from rain and snow. Each guard is a little wider than the top of the car the body portion of the guard being formed with an upwardly curved or flaring forward end while the rear end is cut out and adapted to fit closely around the rounded top of the car so that the wind cannot get under and raise the end. The guard also has downwardly pro jecting side flanges with a slight curve upward at the meeting ends to give the air an upward direction. ble to cover in and protect the spaces between the cars to which may be attached fenders that will com pletely cover the car steps these devices not only keeping out snow wind etc. but serving to .pre vent accidents from passengers falling off the plat forms. The guard is mounted in its operative position on the end of the car by a transverse rod or by bolts which pass through the side flanges making a pivotal bearing in which the inner ends of the guards toward the center of the coach will just overbalance the outer ends. When the train is in motion the air passing under the raised forward end of the guard on the forward end of each coach will raise the rear end of the guard and allow the free passage of smoke dust etc. through the space between the body of the the same time forcing the inner end of the guard at the rear end of each car down tightly against the car roof causing the smoke dust etc. to pass up over the guard: This invention has been patented by Mr. R. J. Gill The Impossible. Prominent among the many quaint devices and curi osities in which the writer's native city abounds were two large stone ornaments serving as guards to seats of honor in one of the public buildings. One of these sport in a boat with flying pennants and all outward signs of merriment while on the companion pillar ap
