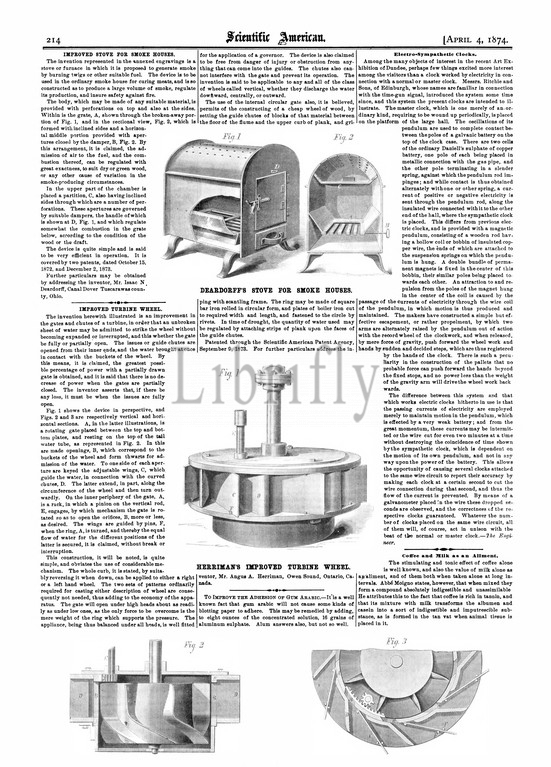

IMPROVED STOVE FOR SMOKE HOUSES. The invention represented in the annexed engravings is a stove or furnace in which it is proposed to generate smoke by burning twigs or other suitable fuel. The device is to be used in the ordinary smoke house for curing meats and is so constructed as to produce a large volume of smoke regulate its production and insure safety against fire. The body which may be made of any suitable material is provided with perforations on top and also at the sides. Within is the grate A shown through the broken-away por tion of Fig. 1 and in the sectional view Fig. 2 which is formed with inclined sides and a horizon tal middle portion provided with aper tures closed by the damper B Fig. 2. By this arrangement it is claimed the ad mission of air to the fuel and the com bustion thereof can be regulated with great exactness to suit dry or green wood or any other cause of variation in the smoke-producing circumstances. In the upper part of the chamber is placed a partition C also having inclined sides through which are a number of per forations. These apertures are governed by suitable dampers the handle of which is shown at D Fig. 1 and which regulate somewhat the combustion in the grate below according to the condition of the wood or the draft. The device is quite simple and is said to be very efficient in operation. It is covered by two patents dated October 15 1872 and December 2 1873. Further particulars may be obtained by addressing the inventor Mr. Isaac N Deardorff Canal Dover Tuscarawas coun ty Ohio. IMPROVED TURBINE WHEEL. The invention herewith illustrated is an improvement in the gates and chutes of a turbine in order that an unbroken sheet of water may be admitted to strike the wheel without becoming expanded or interrupted and this whether the gate be fully or partially open. The issues or guide chutes are opened from their inner ends and the water brought at once in contact with the buckets of the wheel. By this means it is claimed the g
