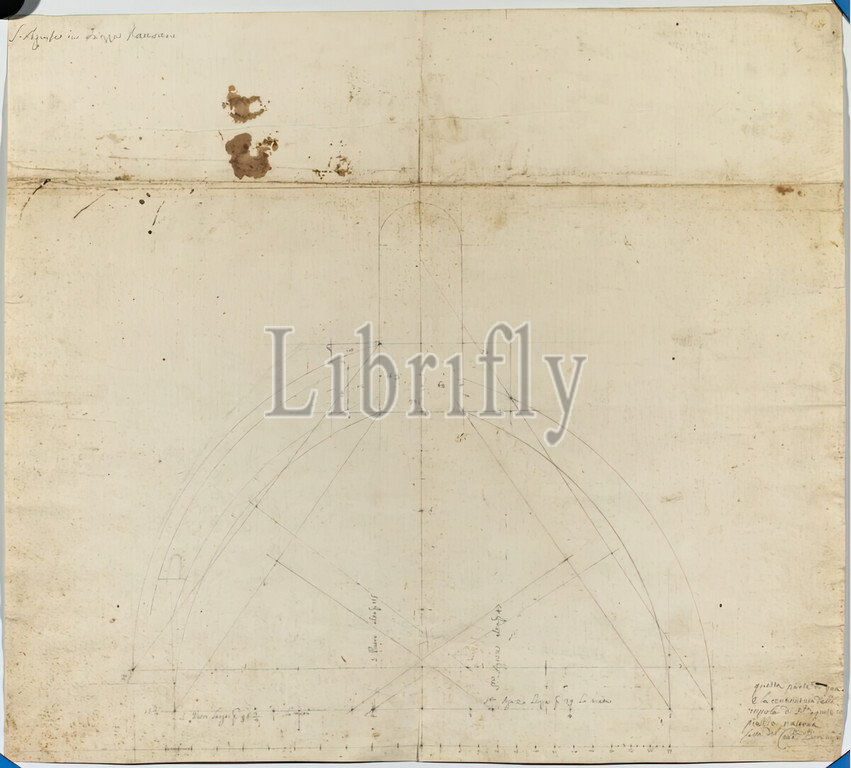

Rome, Sant' Agnese, dome and lantern, cutting diagram, around 1653, architectural drawing, paper, fixed; graphite drawing; blind grooves; Construction, drawing, scales and inscription in graphite, 47 cm x 52 cm, top left: 'S. Agnese in Piazza Navona', bottom right: 'questa parte di qua, e la centinatura della, cupola di S.ta agnese in, piazza navona, fatta del Cavaliere Boromini'; in section, left: 'S. Pietro alta p.mi 115, S. Pietro larga p.mi 96 3/4, la meta'; in section, r.:'S.ta Agnese alta p.mi 47, S.ta Agnese larga p.mi 39, la meta'; listings; Arabic numbering of the scales
