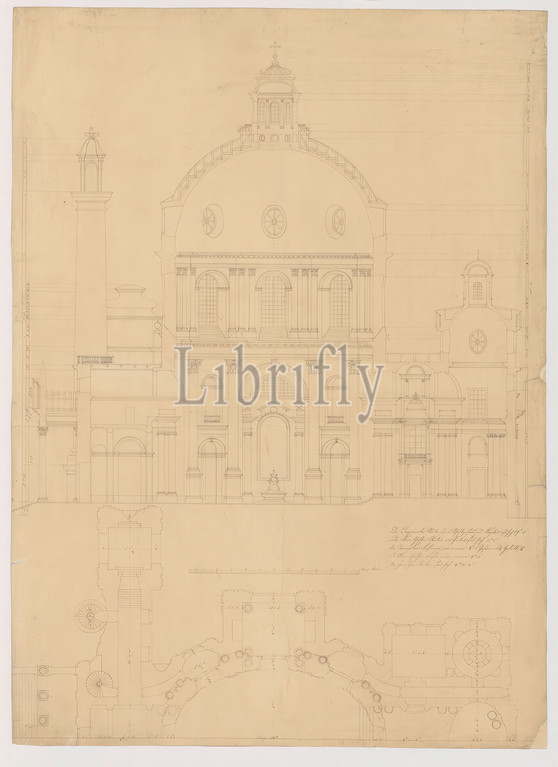

Vienna, Karlskirche, longitudinal section (building survey), Carl von Hasenauer (Vienna 1833 - 1894 Vienna), architectural drawing, pen and ink in black, sheet: 73.2 cm x 52.6 cm, 'The Trojan column including the shaft cornice and chapter is high 19° - 2'./ The Corinthian columns on the portal are high 5° - 2'./ the Roman (sic) reading (sic) inside (sic) 8° - 1' pedestal 1/4 entablature 1/6./ the Corinthian Readings (sic) inside (sic) 4° - 3'./ the Ionic columns are high 4° - 3' - 4'.'
Keywords:
Vienna, Karlskirche, longitudinal section, building survey, Carl von Hasenauer, Vienna 1833, 1894 Vienna, architectural drawing, pen, ink, black, sheet, 73.2 cm x 52.6 cm, Trojan column, shaft cornice, chapter, high 19°, 2'./, Corinthian columns, portal, high 5°, 2'./, Roman, sic, reading, sic, inside, sic, 8°, 1' pedestal 1/4 entablature 1/6./, Corinthian Readings, sic, inside, sic, 4°, 3'./, Ionic columns, high 4°, 3', 4'.
